Trailer Systems

HDT’s Utility Support Trailers are integrated support systems designed to provide mobility, power, and/or environmental control to HDT shelter systems. Conforming to “safe to transport” criteria established by the Military Transport Management Command (MTMC), the trailers are suitable for secondary and unimproved roads and sealift transportability. Many are also certified for air transport aboard select military aircraft.

  • ECU Trailers – Trailer-mounted ECUs for cooling/heating with fuel tank for complete mobility
  • Generator Trailers – Trailer-mounted power generator with fuel tank delivering power to remote locations
  • Generator ECU Trailers (GET) – Trailer-mounted generator and ECU for portable/towable environmental control and power needs in remote locations
  • Cargo Trailers – Trailers for transport of packed expeditionary equipment such as heaters, shelters, and accessories

ECU Trailers

DRASH® Trailer Model

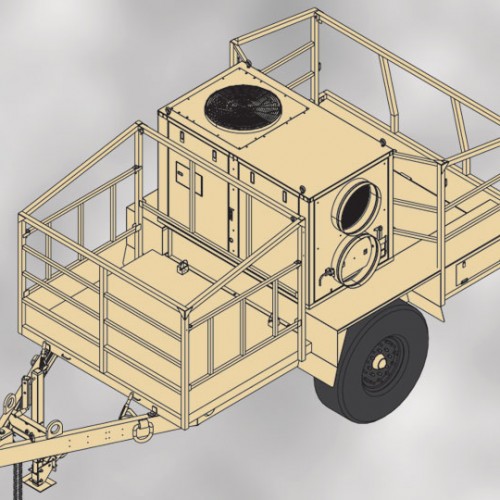

  • HP-2C/5E – 5 Ton ECU/No Genset/5 Gallon Fuel Tank/145 ft3 Cargo Volume
  • HP-2C/8E – 8 Ton ECU/No Genset/5 Gallon Fuel Tank/145 ft3 Cargo Volume

HDT Trailer Model

  • Dual 8 Ton – Two 8 Ton ECUs/No Genset/55 Gallon Fuel Tank/56″ x 48″ Mid Cargo Deck

Generator Trailers

DRASH Trailer Model

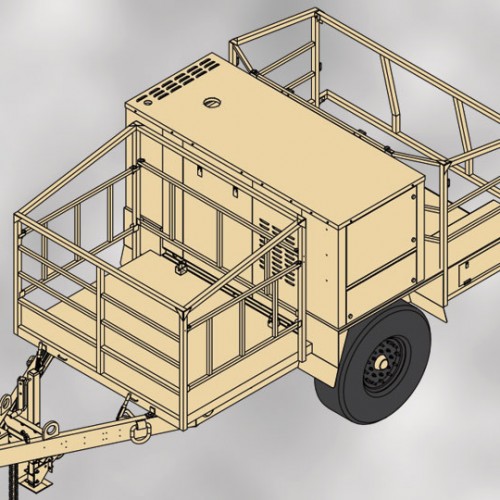

  • HP-2C/18 – 18 kW Genset/No ECU/16 Gallon Fuel Tank/145 ft3 Cargo Volume

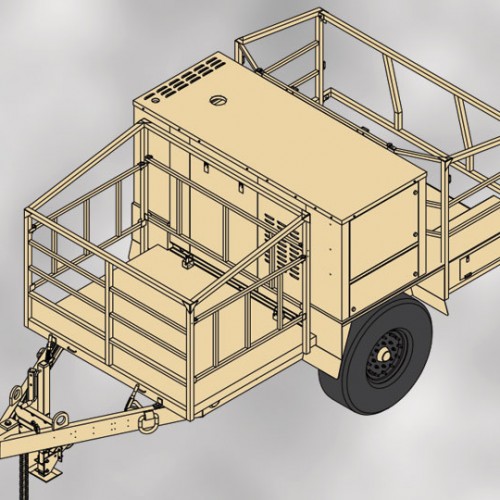

  • HP-2C/33 – 33 kW Genset/No ECU/26 Gallon Fuel Tank/145 ft3 Cargo Volume
  • HP-4G/18 IPT – Two 18 kW Gensets/No ECU/Two 16 Gallon Fuel Tanks/79 ft3 Cargo Volume
  • HP-4G/33 IPT – Two 33 kW Gensets/No ECU/Two 26 Gallon Fuel Tanks/79 ft3 Cargo Volume
  • HP-6G/18 IPT – Two 18 kW Gensets/No ECU/Two 16 Gallon Fuel Tanks/145 ft3 Cargo Volume
  • HP-6G/33 IPT – Two 33 kW Gensets/No ECU/Two 26 Gallon Fuel Tanks/145 ft3 Cargo Volume
  • HP-6G/60 IPT – Two 60 kW Gensets/No ECU/Two 63 Gallon Fuel Tanks/53 ft3 Cargo Volume

HDT Trailer Model

  • Dual 35 kW Digital Trailer – Two 35 kW Gensets/No ECU/55 Gallon Fuel Tank/Limited Cargo Area

Generator ECU Trailers

DRASH Trailer Model

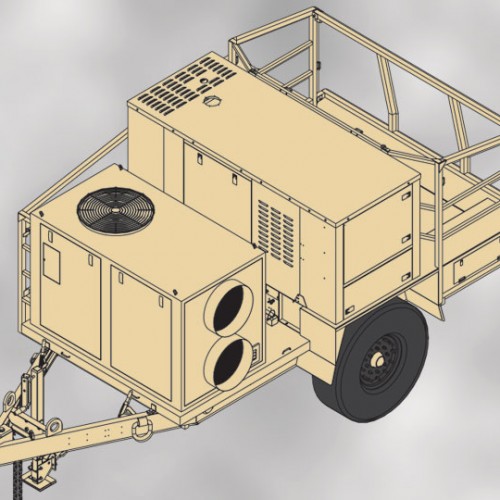

  • HP-2C/185 IPT – 18 kW Genset/5 Ton ECU/16 Gallon Fuel Tank/77 ft3 Cargo Volume

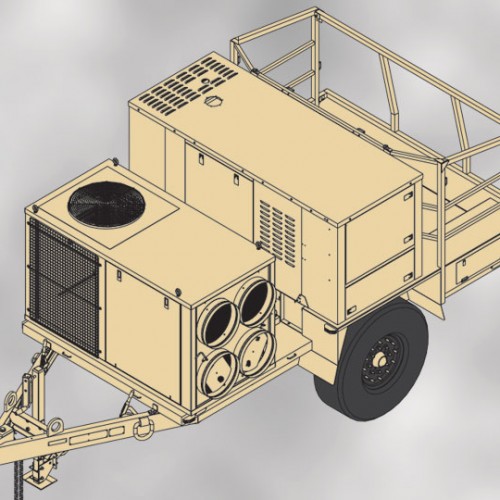

  • HP-2C/188 – 18 kW Genset/8 Ton ECU/16 Gallon Fuel Tank/77 ft3 Cargo Volume

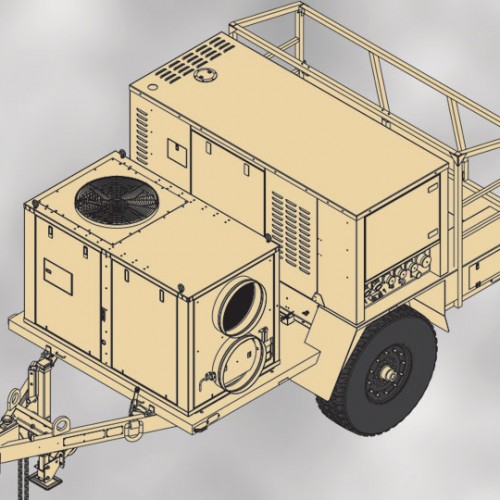

  • HP-2C/285 IPT – 28 kW Genset/5 Ton ECU/20 Gallon Fuel Tank/58 ft3 Cargo Volume

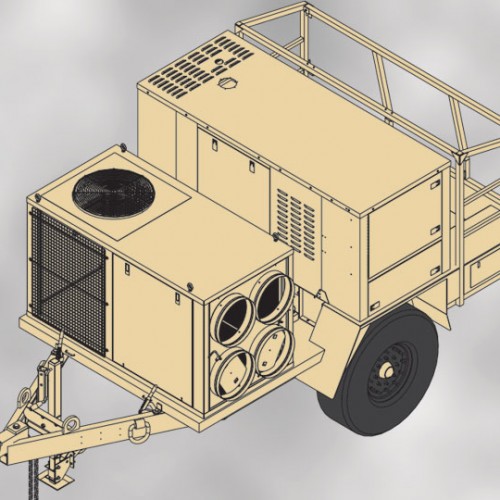

  • HP-2C/288 IPT – 28 kW Genset/8 Ton ECU/20 Gallon Fuel Tank/58 ft3 Cargo Volume

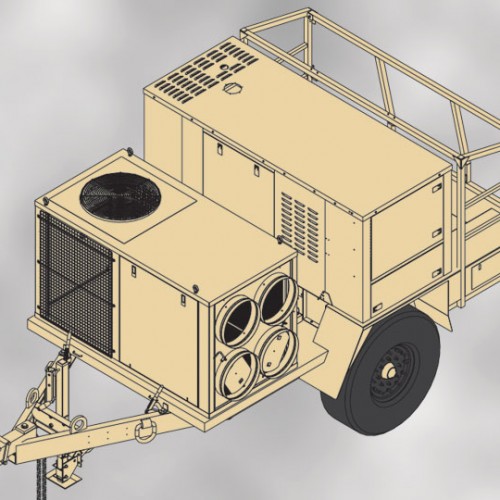

  • HP-2C/338 – 33 kW Genset/8 Ton ECU/26 Gallon Fuel Tank/58 ft3 Cargo Volume
  • HP-4/188 – 18 kW Genset/8 Ton ECU/16 Gallon Fuel Tank/140 ft3 Cargo Volume
  • HP-4/338 – 33 kW Genset/8 Ton ECU/26 Gallon Fuel Tank/140 ft3 Cargo Volume
  • HP-4/3312 IPT – 33 kW Genset/12 Ton ECU/26 Gallon Fuel Tank/140 ft3 Cargo Volume
  • HP-6/185 IPT – 18 kW Genset/5 Ton ECU/16 Gallon Fuel Tank/145 ft3 Cargo Volume
  • HP-6/335 IPT – 33 kW Genset/5 Ton ECU/26 Gallon Fuel Tank 145 ft3 Cargo Volume
  • HP-6/338 IPT – 33 kW Genset/8 Ton ECU/26 Gallon Fuel Tank/145 ft3 Cargo Volume
  • HP-8/3312 – 33 kW Genset/12 Ton ECU/45 Gallon Fuel Tank/319 ft3 Cargo Volume

HDT Trailer Model

  • 35 kW GET – 35 kW Genset/8 Ton ECU/55 Gallon Fuel Tank/Mid and Rear Cargo Decks
  • iGET – 20 kW Genset/5 Ton ECU/41 Gallon Fuel Tank/Mid and Rear Cargo Decks

Cargo Trailers

DRASH Trailer Model

  • HP-J4 – 5 kW Genset/No ECU/No Fuel Tank/270 ft3 Cargo Volume (used specifically to transport J Shelter and its components)
  • HMCT – No Genset/No ECU/No Fuel Tank/145 ft3 Cargo Volume

HDT Trailer Model

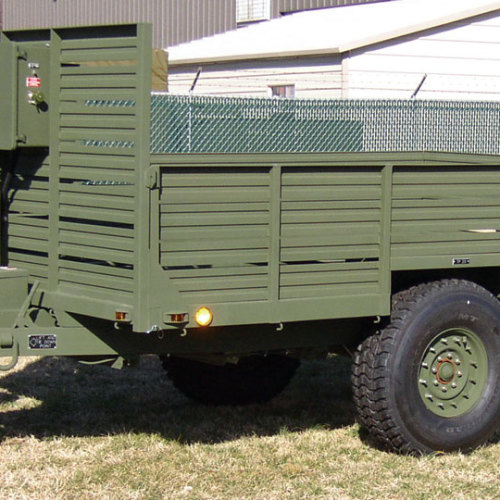

  • 172″ Fuel-Cargo Shelter Support Trailer – No Genset/No ECU/100 Gallon Fuel Tank
  • 160″ Fuel-Cargo Shelter Support Trailer – No Genset/No ECU/85 Gallon Fuel Tank
